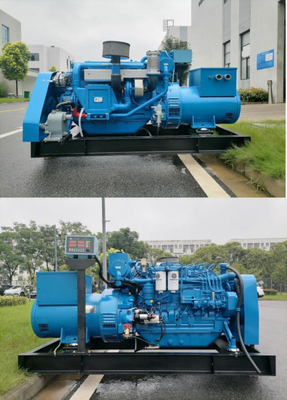

100KW marine diesel generator WP6CD132E200 equipped with Marathon MP-H100-4

MOQ:	1
Price:	98
Standard Packaging:	wooden cases
Delivery Period:	5 days
Payment Method:	L/C
Supply Capacity:	187

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Weichai

Certification

Model Number

Product Description

Marine Diesel Generator Set Technical Specification

Model: CCFJ100J-W

RatedPower: 100kW/ 125kVA

Classification: CCS (China Classification Society)

1. Diesel Engine (Weichai WP6CD152E200)

Item	Specification
Engine Brand	Weichai Power
Engine Model	WP6CD132E200
RatedPower	120kW
Rated Speed	1500rpm
Starting Method	Electric start (24V DC)
Cooling System	Seawater-freshwater heat exchanger
Emission Standard	Tier II / Marine emission standard
Engine Structure	6 cylinders, in-line, water-cooled, 4-stroke
Governor Type	Electronic governor with signal output
Dimension	2100x1150x1180 MM
Weight	1550KG

2. Alternator (Marathon MP-H120-4)

Item	Specification
Alternator Brand	Marathon Electric
Alternator Model	MP-H100-4
Rated Output Power	100kW
Rated Voltage	380V
Frequency	50Hz
Power Factor	0.8 (lagging)

Phases	3-phase, 4-wire
Insulation Class	Class H
Protection Grade	IP23
Voltage Regulation	AVR (Automatic Voltage Regulator)

3. Control System

Item	Specification
Control Type	Local panel (side-mounted)
Control Functions	Start/stop, protection, status indication
Alarms & Protection	Overspeed, high water temp, low oil pressure, overload
Display Meters	Voltage, current, frequency, RPM, water temp, oil pressure
Classification	CCS-certified

4 . Structure & General Specifications

Item	Specification

Unit Structure	Open-type (skid-mounted)
Cooling Method	Seawater-freshwater heat exchanger
Noise Level	≤95 dB (open type)
Fuel Consumption	≤210g/kWh (reference)
